John Deere - iMatch Quick Hitch System

DIMENSIONS

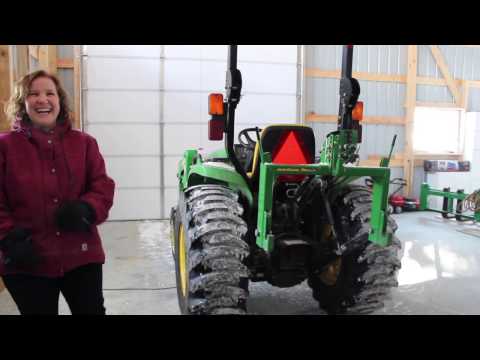

In this video, we review some of the measurements found on the John Deere iMatch Quick Hitch System:

A couple of the key measurements are:

15" form the top link center pin hook to the center of the side arm hook

(when it is set up for John Deere Category 1 implements)

The top link hook is adjustable on our unit so it can be adjusted up or down to accommodate other implements but it would seem to defeat the purpose if you had to move or change it for each separate implement.

27 1/8" - inside distance between the side arm hooks

29 1/2" - outside distance between the side arm hooks
